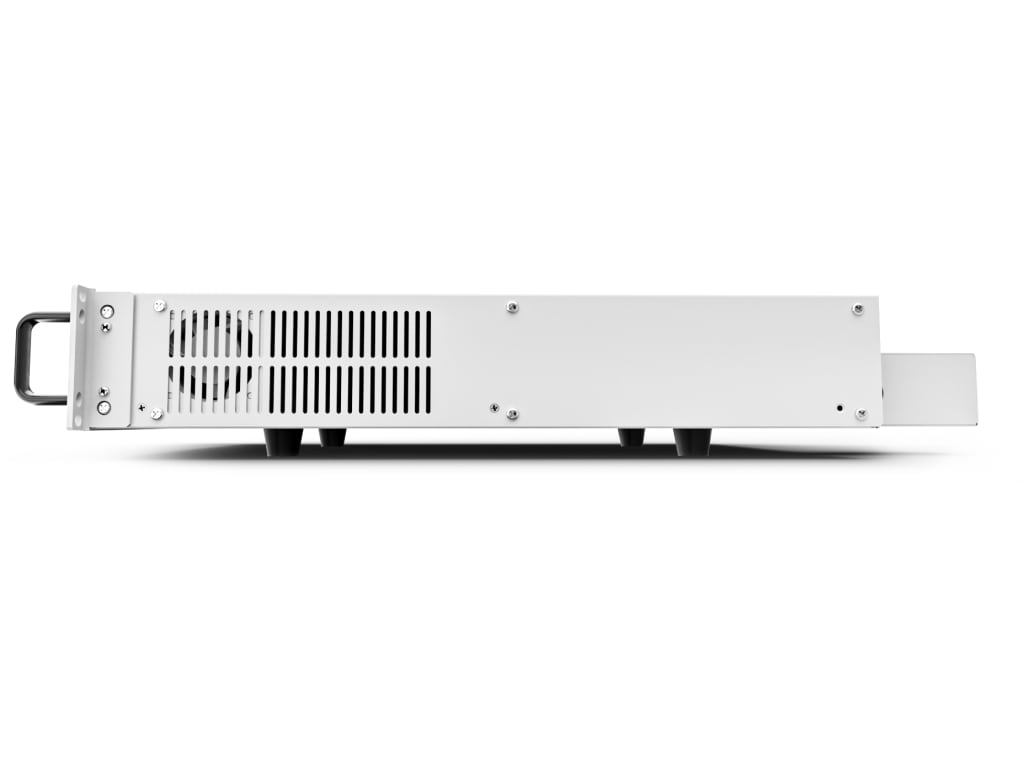

Image 3
ITECH | DC Power Supply

IT6502D

Rs. 111240.00

The ITECH IT6502D is a single-channel high-power programmable DC power supply designed for R&D labs, EV component testing, industrial automation, and high-demand power applications. It provides wide-range voltage/current output with fast transient response, high accuracy, and comprehensive protection features — all within a compact 2U rack-mountable chassis..

  • Detail
  • Special Features
  • Specification

The IT6502D belongs to ITECH’s IT6500D series and offers high power density with excellent load regulation and ripple characteristics. Its wide output range allows flexible configuration for different testing environments. This model supports LIST programming mode for simulating complex voltage/current sequences and provides accurate real-time waveform generation via PC software.

It is ideal for automotive electronics, power module validation, battery charging simulation, and high-speed production testing. With multiple communication interfaces and SCPI protocol support, the IT6502D integrates smoothly into automated test systems.

  1. Wide-range output: 0–80 V, 0–60 A, up to 1200 W

  2. Fast dynamic response for transient testing

  3. CV/CC automatic crossover

  4. Built-in list and step modes for complex test sequences

  5. Bright VFD display with real-time monitoring

  6. High resolution: 1 mV / 1 mA programming & measurement

  7. USB, RS232, GPIB, and LAN interfaces (optional)

  8. OVP, OCP, OTP protection and foldback functions

  9. 2U standard 19” rack-mount size

Parameter Value
Output Voltage Range 0 – 80 V
Output Current Range 0 – 60 A
Output Power 1200 W
Voltage Programming Accuracy ≤ 0.05% + 10 mV
Current Programming Accuracy ≤ 0.1% + 20 mA
Voltage Readback Accuracy ≤ 0.05% + 10 mV
Current Readback Accuracy ≤ 0.1% + 20 mA
Programming Resolution Voltage: 1 mV / Current: 1 mA
Readback Resolution Voltage: 1 mV / Current: 1 mA
Ripple & Noise (20 Hz–20 MHz) ≤ 30 mVrms / ≤ 50 mVpp
Load Regulation Voltage: ≤ 0.01% + 2 mV
